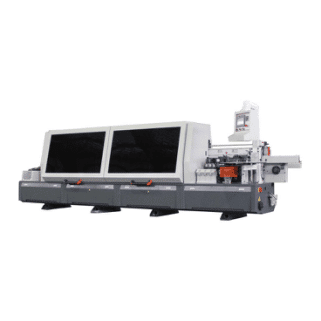

Automatic Edge Banding Machine-MFZ518C
Specifications
| Model | MFZ518C |
| Motor power | 10.59kw |
| Overall size | 5500×1100×1600mm |
| Feed speed | 12-20m/min |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4-3mm |
| Panel width | ≥50mm |
| Working pressure | 6kg |
| Weight | 2000kg |
| Pre-milling | / |
| Gluing | ● |
| End trimming | ● |
| Rough trimming | ● |
| Fine trimming | ● |
| Profiling unit | ● |
| Scraping | ● |
| Buffing | ● |
| Grooving | / |
Details

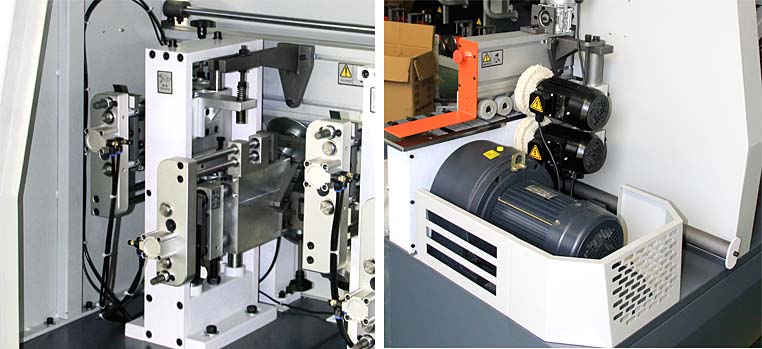

1.Gluing
Dual glue pot, Quick Melt Glue System
2.End cutting
Dual Motor End Trim
3.Rough and Fine Trimming
Top & Bottom Trim
Maximum precision Reliability and cutting precision thanks to the Edge-Trimming Unit, eliminating excess at each end of the panel.
4.Corner Trimming
Designed to remove microwaves on the machined radius surface of the edge after milling units.
5.Buffing
POLISHING UNIT
Polishing is required for finishing the edgebanding. This operation provides:
The gloss of the treated surface, cleans from dirt.
Polishing unit – two motors, two polishing wheels
